CNC Editor

New and Improved, Stand-Alone

The same full featured CNC Editor, Auto File Compare and Backplot applications, which are included in the integrated Multi-DNC package, are now available in a stand-alone configuration for use on an individual PC.  Now you can edit, view and manage CNC files offline, while production continues online with Multi-DNC.

Product Features

N

CNC Editor

Full featured editing of large CNC code programs with no artificial limitations to the number of lines in a CNC program.

N

Windows®

Standard Windows interface functions make it easy to learn and use.

N

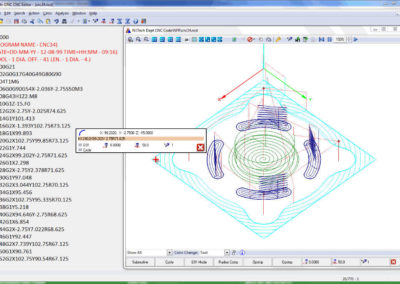

3D Backplotting

Displays graphic wire-frame tool paths with many viewing options. Graphic manipulation is easy with dynamic zoom, pan, and rotation.

N

Resequencing

Re-sequence the Program “N” blocks for a selected block or the entire file.

N

Graphics Calculator

Define oblique triangle solutions, distances between two points, arc calculators and more. Cut and paste answers back into a CNC program.

N

Run-time Analytics

Calculate approximate CNC run-time, including individual times for all rapid, linear, and circular moves.

N

File Compare

Locates and highlights differences between the original file sent to a CNC control vs. a changed file sent back to the DNC system.

N

Printer Friendly

Print compared files side-by-side with all differences highlighted in red.
